WIFI & RF AC Triac Dimmer Puck
- Buy 3 for Regular Price $70.90 each and save 5%
- Buy 5 for Regular Price $67.90 each and save 9%
| Function | Dimmer |
|---|---|
| Input Voltage | 100-240V AC |
| Output | 1.5A (345W at 230V) |
| Weight | 53g |
| Dimensions | L=52mm, W=52mm, H=25mm |
This WIFI & RF AC triac dimmer puck can be used to dim and switch single colour dimmable 230V Mains Voltage LED products such as Dimmable LED Downlights, or used to control low voltage LED products via Triac Dimmable Power Supplies.
These dimmer pucks can be controlled with our1-Zone or 4-Zone Dimmer Wheel RF Remote Control, the Tuya app, or an external push switch.

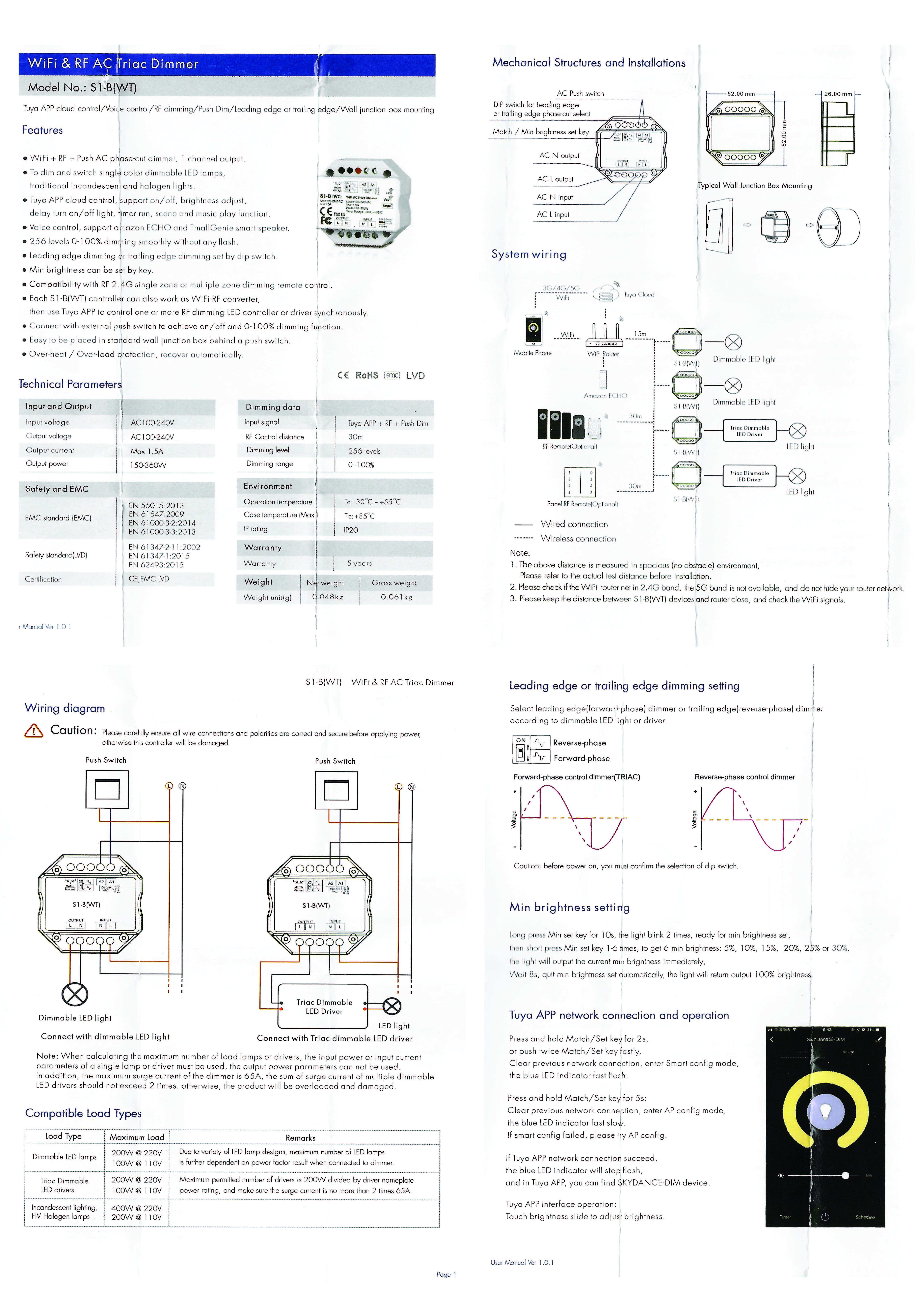

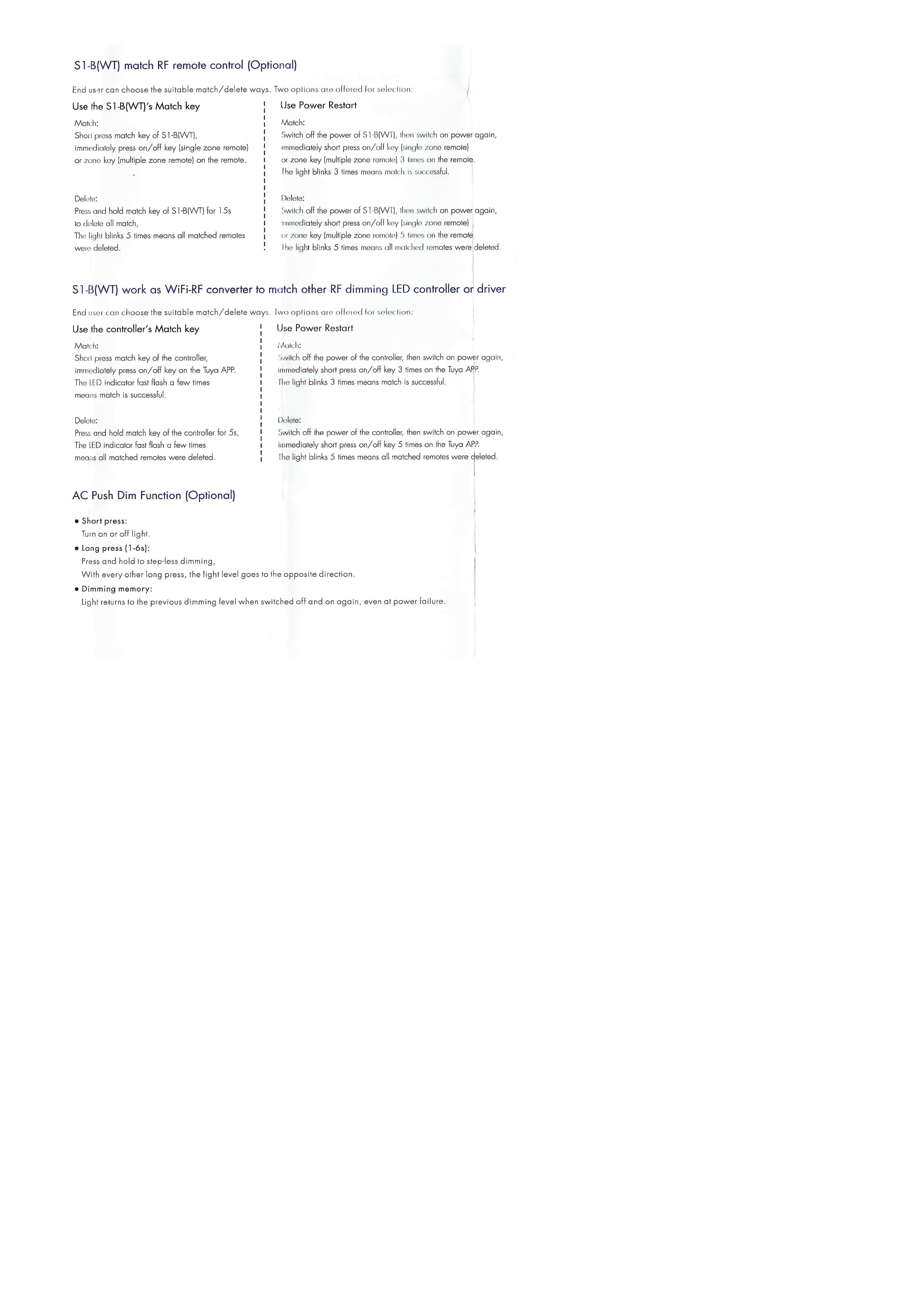

Matching is very easy with a single button press on this controller base and the chosen remote/zone - please see the Supporting Info tab for instructions for use, including how to match a remote to a receiver.
It has 256 levels of smooth 0-100% dimming.
You can set a minimum brightness and also select whether to run from forward-phase (leading edge) dimming or reverse-phase (trailing edge) dimming.
We also have a set of 4 dimmer pucks + 1x 4-Zone Dimmer Wheel RF Remote available, at a cheaper price than if purchased individaully.
All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.
This item is covered for 24 months from the time of sale.
In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.
Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.
