WIFI & RF AC Triac Dimmer Puck - 4 Pack with 4 Zone Remote
- Buy 2 for Regular Price $259.90 each and save 4%
- Buy 5 for Regular Price $252.90 each and save 6%
| Function | Dimmer |
|---|---|
| Input Voltage | 100-240V AC |
| Output | 1.5A (345W at 230V) |
| Weight | Puck: 53g |
| Remote Dimensions | L=122mm, W=53mm, H=17.5mm |
| Dimensions | Puck: L=52mm, W=52mm, H=25mm |
This WIFI & RF AC triac dimmer puck 4 pack can be used to dim and switch single colour dimmable 230V Mains Voltage LED products such as Dimmable LED Downlights, or used to control low voltage LED products via Triac Dimmable Power Supplies.
Each pack comes with 4 dimmer pucks and one 4 Zone Dimmer Wheel RF Remote.
The dimmer pucks can be controlled with our 1-Zone or 4-Zone Dimmer Wheel RF Remote Control, the Tuya app, or an external push switch.

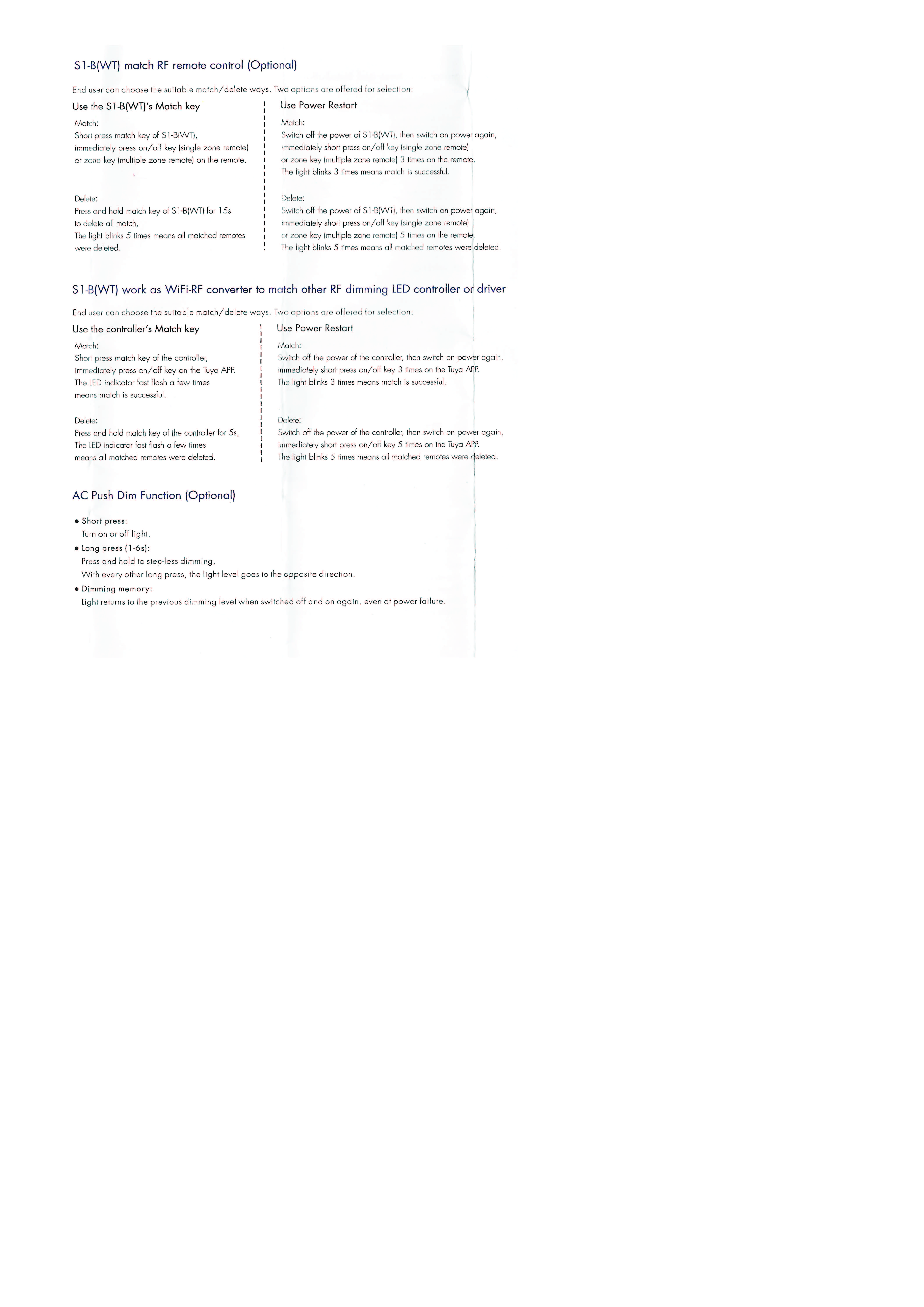

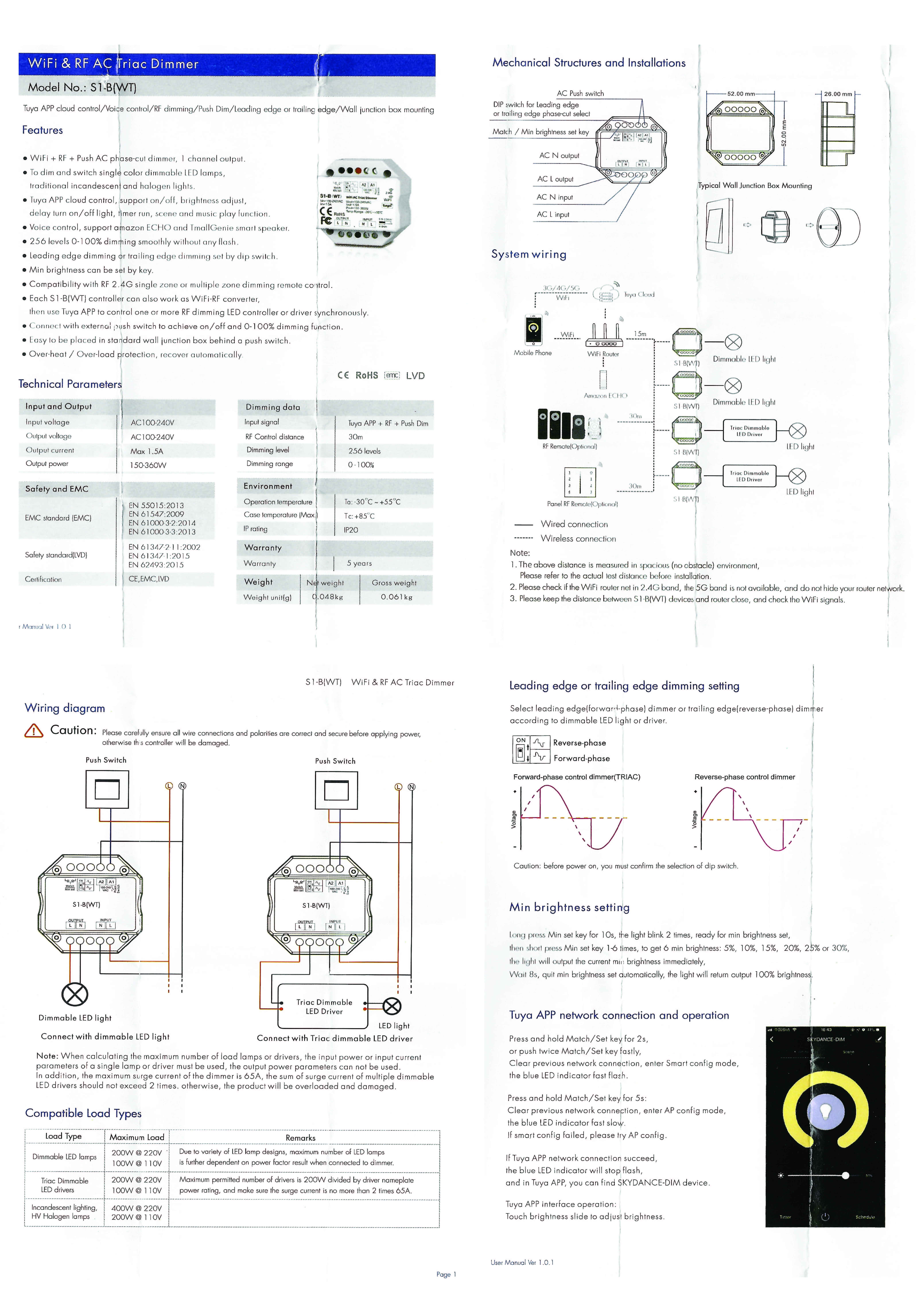

Matching is very easy with a single button press on this controller base and the chosen remote/zone - please see the Supporting Info tab for instructions for use, including how to match a remote to a receiver.
It has 256 levels of smooth 0-100% dimming.
You can set a minimum brightness and also select whether to run from forward-phase (leading edge) dimming or reverse-phase (trailing edge) dimming.
These dimmer pucks and remotes can also be purchased individually if you wanted to expand your range or add extra dimmer pucks, as multiple pucks can be paired to a single zone to be controlled at the same time. See the whole range here.
All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.
This item is covered for 24 months from the time of sale.
In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.
Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.
