4 Zone Dimmer Wheel RF Remote

This sleek black 4 zone RF Remote can be used to control our Dimmer Receiver 12-48V 15A, or our 230V Wifi Triac Dimmer Puck. It can be used to control 4 zones of single colour 12V, 24V, 36V or 48V LED products and can be paired with multiple dimmer receivers.

This remote has a range of 30m and will operate through walls and most other barriers inside your home.

Each remote comes with a wall mountable cradle for safe storage of the remote when not in use. It also comes with an adhesive foam pad and 2 screws for mounting.

The lights will fade on when you use the master on/off button on the remote to turn them on, and vice-versa when you turn them off.

Short press the zone buttons (1, 2, 3, 4) to select and turn on that zone. Long press (2 seconds) to turn off the zone light. Short press multiple zone keys quickly to select multiple zones which can then be controlled synchronously.

You can control the brightness using the dimmer wheel, scrolling around to increase or decrease the brightness.

The middle row of buttons switch the lights to 25%, 50%, 75% or 100% brightness for the current selected zone.

There are 4 scene buttons (S1, S2, S3, S4) which can be used to save specific scenes for future use. Long press (2 seconds) the scene button to save the current scene. The green indicator light on the remote will flash when the save has been successful. Short press the scene button to recall the saved scene.

The controller will remember the last setting when powered off, even if it has experienced a period of power loss. This is so it can be used with a wall switch if required.

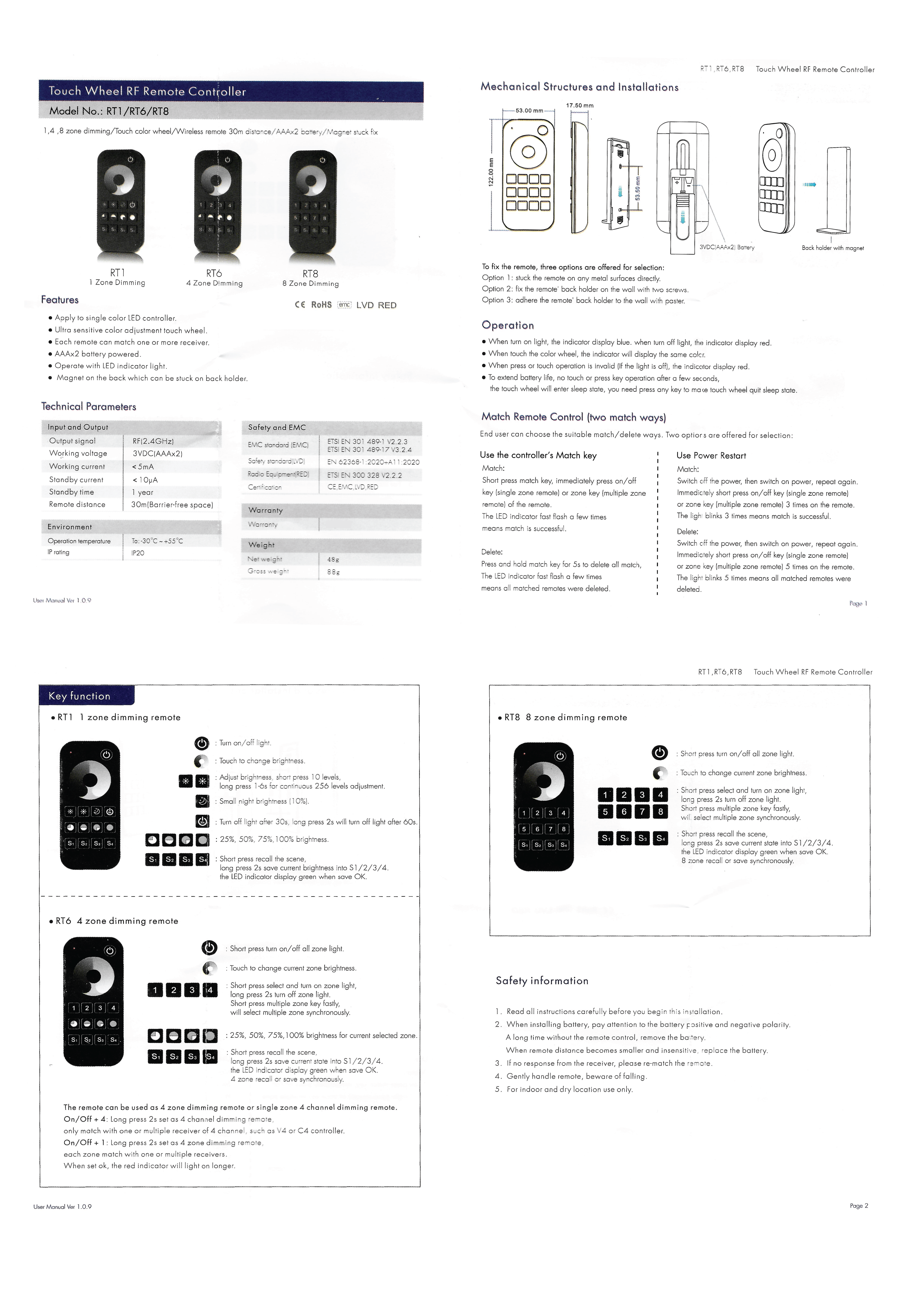

See the Supporting Info tab for more instructions for use, including how to match the remote to a receiver.

Also available in a 1-Zone remote option, which can only be used to control a single zone.
