Dimmer Receiver 12-48V 10-15A

In stock
Regular Price $39.90
  • Buy 3 for Regular Price $38.90 each and save 3%
  • Buy 5 for Regular Price $37.90 each and save 5%
Technical Data
Zones1 Zone
Input Voltage12-48V DC
Max Power Load12V=180W, 24V/36V=360W, 48V=480W
Output15A at 12/24V, 10A at 36/48V
InputRF 2.4GHz or Push Dim
Operating Temperature-30°C - +55°C
Controller DimensionsL=175mm, W=45mm, H=27mm

This dimmer receiver can be used to control any dimmable single-colour 12V, 24V, 36V or 48V LED product, such as our strip light.

It can run up to 15A at 12/24V, or 10A at 36/48V, and it has a single output channel.

These base stations are wirelessly controlled, so you do not need to run signal wires between areas if you are using more than one receiver. The receivers auto-transmit the signal to another controller within 30m distance. You can run products of a different voltage (e.g. 12V and 24V products) from the same remote.

It will remember the last setting when powered off, even after experiencing a period of power loss. This is so it can be used with a wall switch if needed.

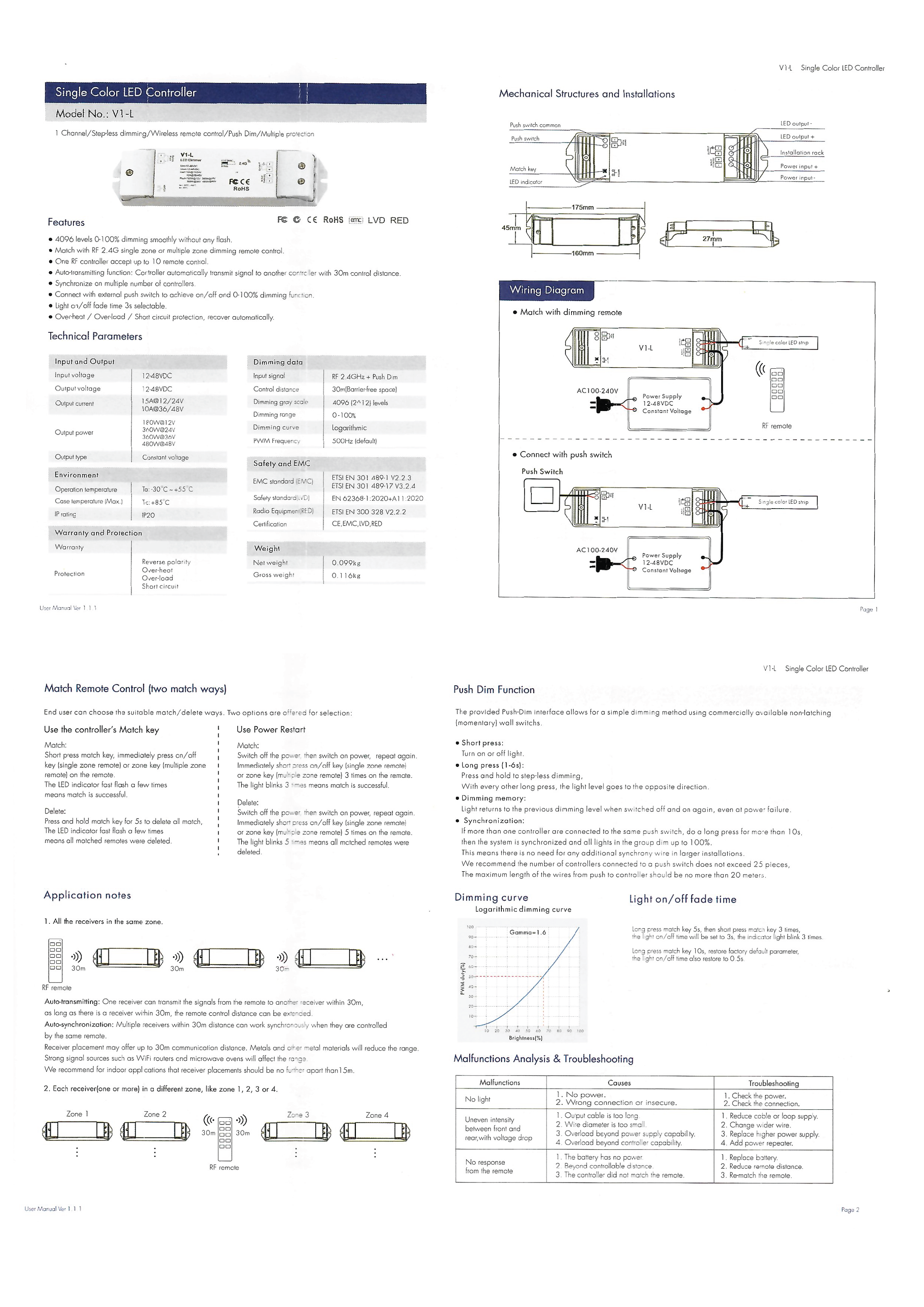

Matching is very easy with a single button press on this controller base and the chosen remote/zone - please see the Supporting Info tab for instructions for use, including how to match a remote to a receiver.
Press the match key quickly 3 times after power reset to change the turn on/off speed (choice between immediate and 3 second fade).

This product needs to be accompanied by either of our 1-Zone or 4-Zone Dimmer Wheel RF Remotes, or one of our DMX Touch Plate Wall Dimmers (via RF). It can be matched with up to 10 remotes if required. If using the 4 Zone remote, you will need at least one receiver for each zone you wish to run, but one remote will operate them all. You can programme multiple receivers to the same zone.

See the Supporting Info tab for more instructions for use, including how to match a remote to the receiver.

Alternatively, this product can be used with a non-latching (momentary) push-button wall switch (not available at LEDstuff).

Write Your Own Review
You're reviewing:Dimmer Receiver 12-48V 10-15A
Your Rating

All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.

This item is covered for 24 months from the time of sale.

In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.

Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.

Dimmer Receiver 12-48V 10-15A is available to buy in increments of 1
