1 Zone Dimmer Wheel RF Remote

In stock
SKU
LED-CONSR1
Regular Price $36.90
  • Buy 2 for Regular Price $35.90 each and save 3%
Technical Data
Zones1 Zone
FunctionDimmer
Input Voltage12-48V DC
Remote Range30m
Remote FrequencyRF 2.4GHz
Remote Battery2x AAA (included)
Weight60g
Remote DimensionsL=122mm, W=53mm, H=17.5mm

This sleek black RF Remote can be used to control our Dimmer Receiver 12-48V 15A, or our 230V Wifi Triac Dimmer Puck. It can be used to control single colour 12V, 24V, 36V or 48V LED products and can be paired with multiple dimmer receivers.

This remote has a range of 30m and will operate through walls and most other barriers inside your home.

Each remote comes with a wall mountable cradle for safe storage of the remote when not in use. It also comes with an adhesive foam pad and 2 screws for mounting.

The lights will gradually fade on when you use this remote to turn them on, and vice-versa when you turn them off.

You can control the brightness using the dimmer wheel, scrolling around to increase or decrease the brightness. The first and second buttons can also be used to adjust brightness - short press for 10 levels of brightness control or long press for 256 levels of adjustment.

The moon and stars button is a night mode at 10% brightness. The timer button will turn the lights off after 30 seconds, or 60 seconds if you long press the button (2 seconds).

The middle row of buttons switch the lights to 25%, 50%, 75% or 100% brightness.

There are 4 scene buttons (S1, S2, S3, S4) which can be used to save specific scenes for future use. Long press (2 seconds) the scene button to save the current scene. The green indicator light on the remote will flash when the save has been successful. Short press the scene button to recall the saved scene.

The controller will remember the last setting when powered off, even if it has experienced a period of power loss. This is so it can be used with a wall switch if required.

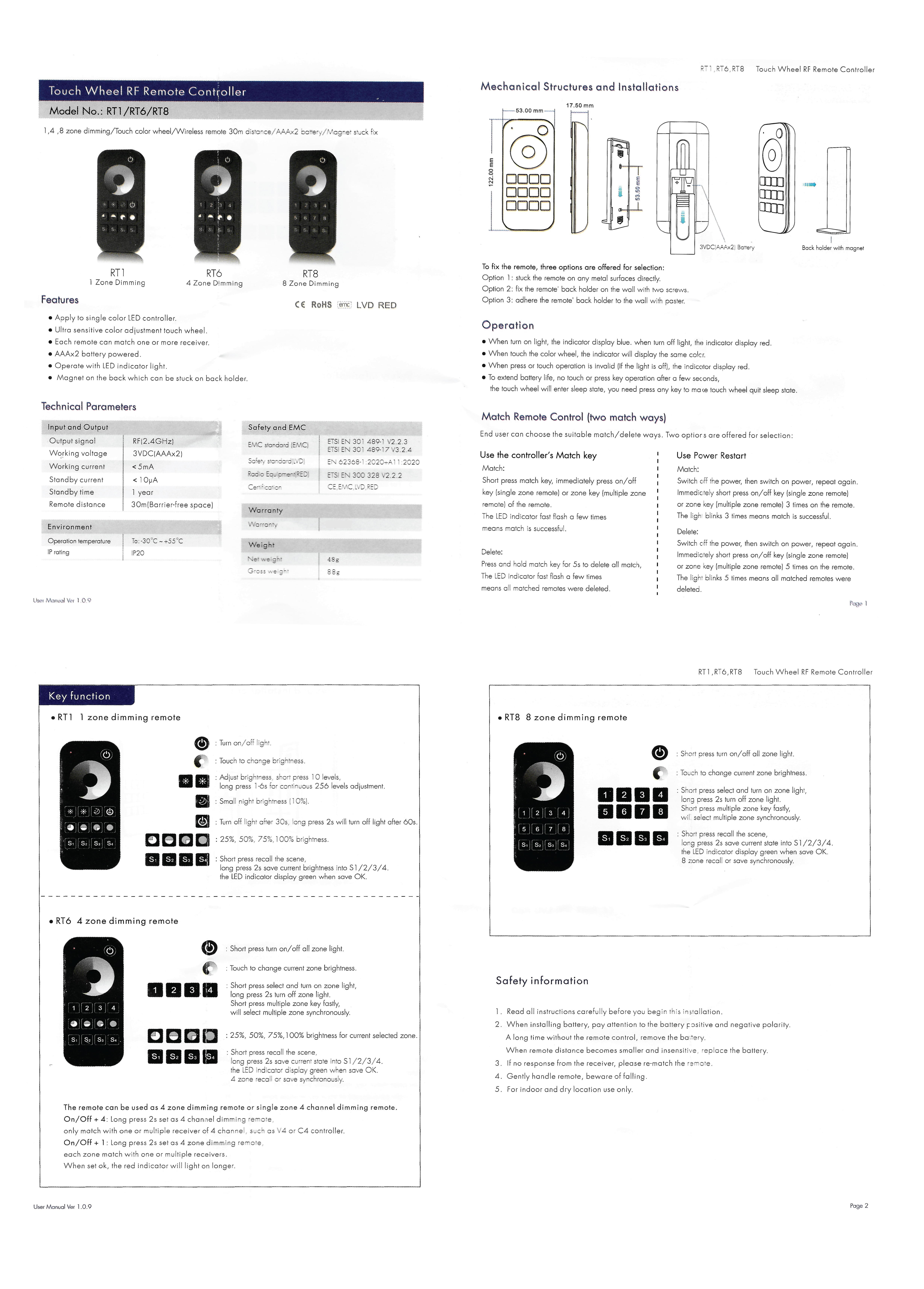

See the Supporting Info tab for more instructions for use, including how to match the remote to a receiver.

Also available in a 4-Zone option, which can be used to control up to 4 different areas of lighting independently.
