DMX512 4-Channel Decoder 12-36V 32A

In stock
SKU
LED-CONDMX48A
Regular Price $64.90
  • Buy 2 for Regular Price $62.90 each and save 3%
  • Buy 5 for Regular Price $60.90 each and save 6%
Technical Data
Input Voltage12-48V DC
Max Power Load12V=384W, 24V=768W, 36V=864W, 48V=1152W
Output30A (4 channels of 8A at 12/24V, 4 channels of 6A at 36/48V)
Max Current8A x 4 channels. Total max = 32A
Weight270g
DimensionsL=175mm, W=46mm, H=32mm

Use with a DMX system for superior light control! Can be operated via our DMX wall plate or 3rd party DMX systems.

This is a slave/decoder unit that takes a signal from a DMX contoller (sold separately) to control any dimmable 12 - 24VDC LED products with up to 4 channels.

It uses the industry standard DMX512 protocol, and has a digital numeric display with buttons to set the address of the unit (001 to 999), or it can be set by the DMX Master via the RDM function.

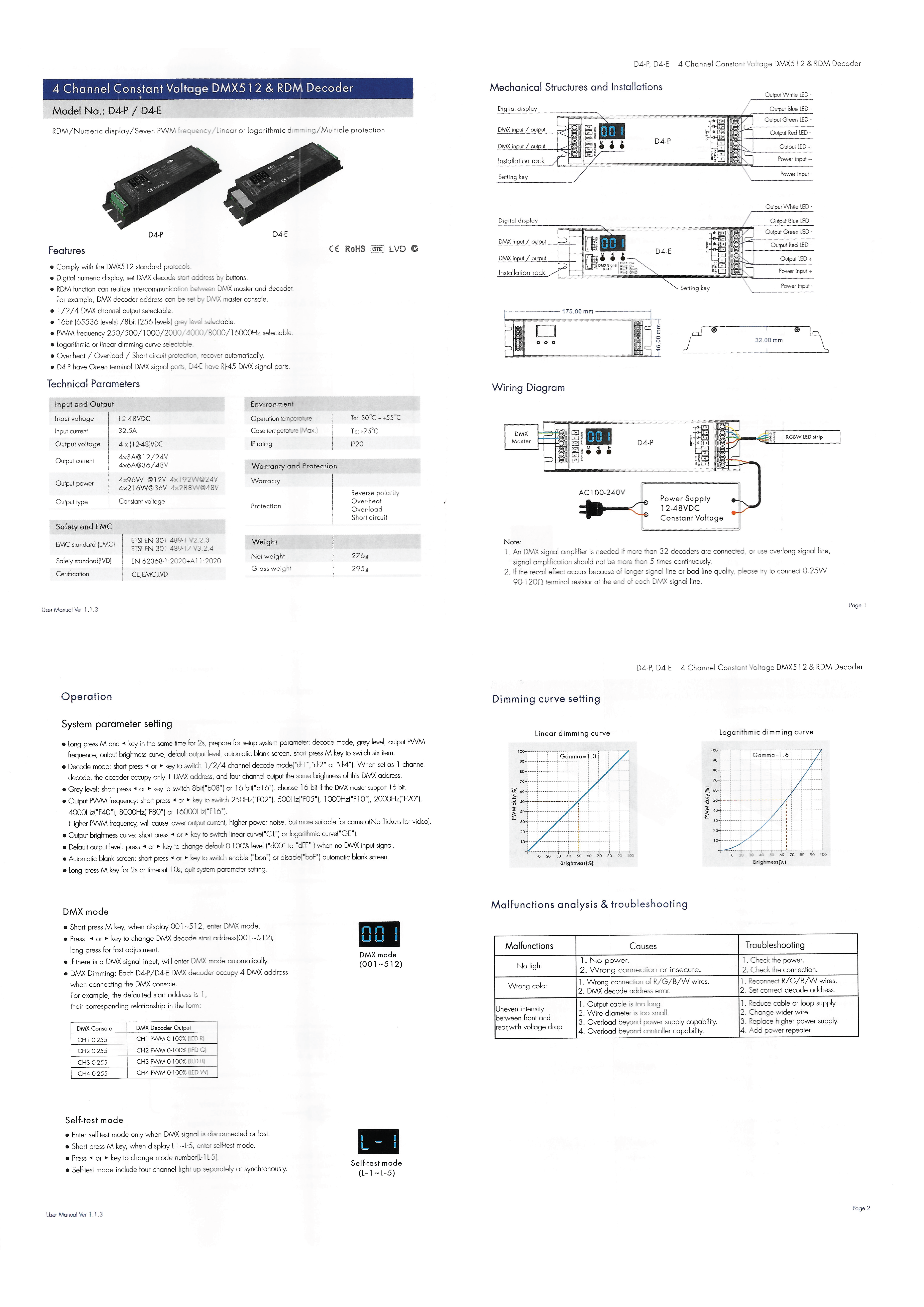

The RJ45 connector ports makes connecting units easy - just use standard RJ45 Network cables to link in & out, and you can daisy-chain up to 32 units before a signal amplifier is required. Each unit requires an external power supply (12-24V depending on the voltage of the product being driven), please see the installation instructions for diagrams.

It has a self-test mode for use when no DMX signal is connected.

Use this with our Single Colour (Dimming), RGB, or RGBW wall plates, or with a 3rd party DMX Master Controller.
