Wall Touch Plate RGBW DMX512 Controller 4 Zone 12/24VDC (Only 3 remaining)

In stock
Only 3 left
SKU
LED-CONWPDMX
Regular Price $109.90
  • Buy 2 for Regular Price $106.90 each and save 3%
  • Buy 5 for Regular Price $102.90 each and save 6%
Technical Data
Zones1 Zone
FunctionRGBW
Input Voltage12-24V DC
OutputDMX 512
Operating Life50,000 hours
Max Current16A (total)
Standby Power Consumption0.4W
Operating Temperature< 50°C
Weight215g
Controller DimensionsH=86mm, W=86mm, D=36mm

This wall plate RGBW controller is designed for controlling any 12V or 24V RGBW colour-changing product on a DMX512 system, such as our LED RGBW strip light. It has a clean modern look with its glass touch panel, and it emits a pleasant sound to indicate when a touch has registered - however this can be turned on/off (muted) simply by pressing and holding the power button until it sounds. A blue indicator light shows just above the power button when the unit is powered off so that it is easy to locate in the dark.

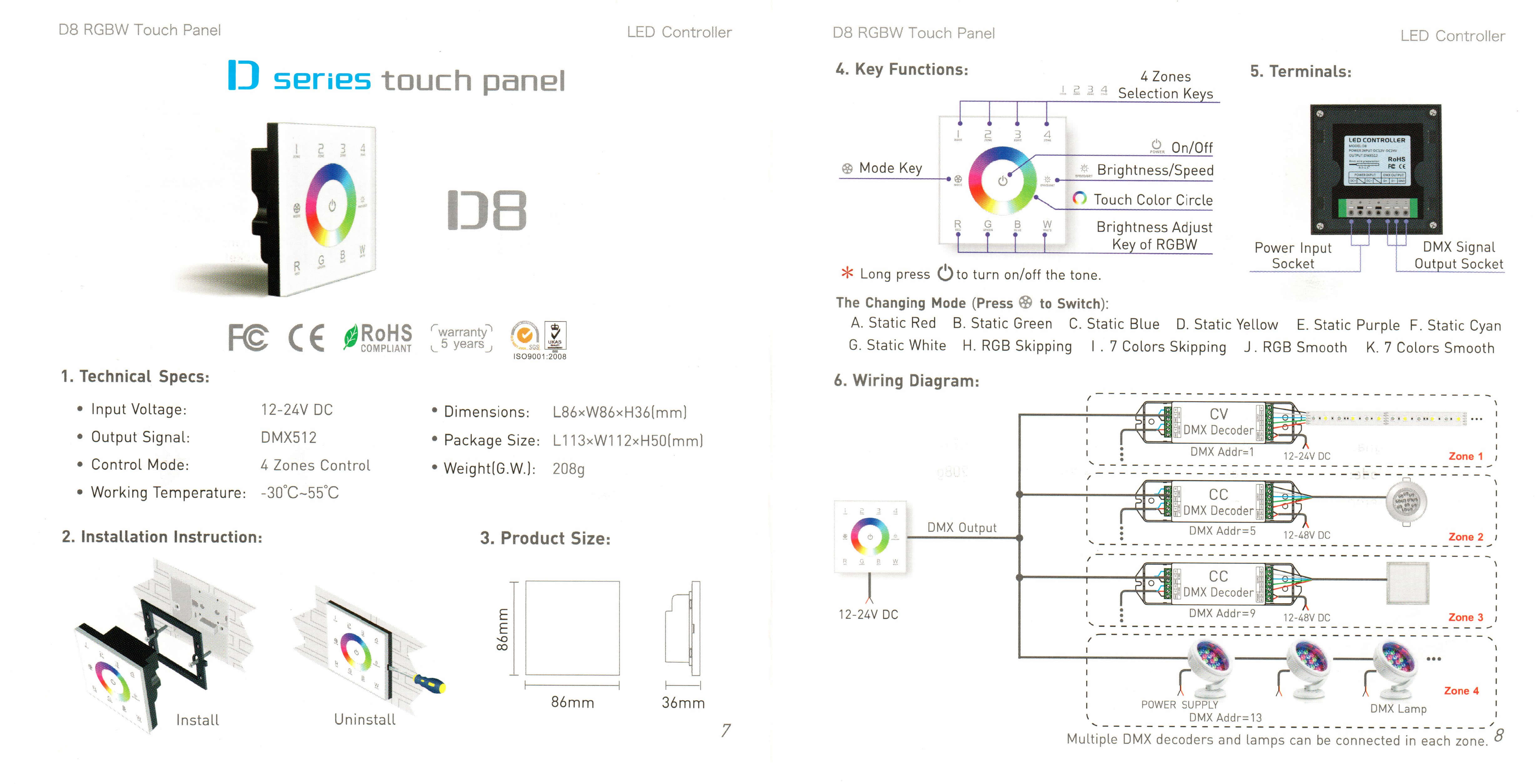

Run up to 4 zones of lighting products, using a DMX driver module for each zone, such as our LEDstuff DMX 2-Channel Controller. Refer to the wiring diagram and ensure you use a different set of DMX addresses for each zone. For example, Zone 1 starts at address 1, Zone 2 starts at address 5 etc.

Please note that this does not fit into a standard wall socket box. It is supplied with an 86 type switch box which is installed into the wall beforehand - this product is recommended for new builds or renovations where new GIB board will be installed. Retrofitting an 86 box into the wall will be difficult as the touch panel only just covers the hole the panel is recessed into. This unit comes with mounting screws.

Function:

The top 4 keys change between the 4 different zones available. Control the brightness of a single colour up and down, or change the speed of fade/flash between colours in the colour-changing modes using the 'SPEED/BRT' key to the right hand side of the colour dial. Set it to a specific colour at any time simply by selecting the desired colour on the colour wheel dial, or set to red, green, blue, or white mode by pressing the one of the colour keys along the bottom of the panel, and change the brightness of these colours by pressing and holding these keys. Change to a mode and scroll through the different modes by pressing the mode key to the left of the colour dial. This will also jump back to the last mode set when pressed after having set a single colour on the colour wheel dial.



Modes available:

  • Static Red
  • Static Green
  • Static Blue
  • Static Yellow
  • Static Purple
  • Static Cyan
  • Static White
  • RGB (3 colours) jumping/flashing
  • 7 colours jumping/flashing
  • RGB (3 colours) smooth fading
  • 7 colours smooth fading


Use this controller with our flexible RGBW strip light.
