4 Zone Dimmer Receiver 12/24V 10A

In stock
Special Price $29.90 Special Price $49.90
Technical Data
Zones4 Zone
Input Voltage12/24V DC
Output6A max per channel, 10A max total
Controller DimensionsL=85mm, W=45mm, H=22.5mm

This item is end of line - limited stock remaining!

This 4 Zone receiver can be used to control any dimmable 12 or 24V LED product, such as our strip light.

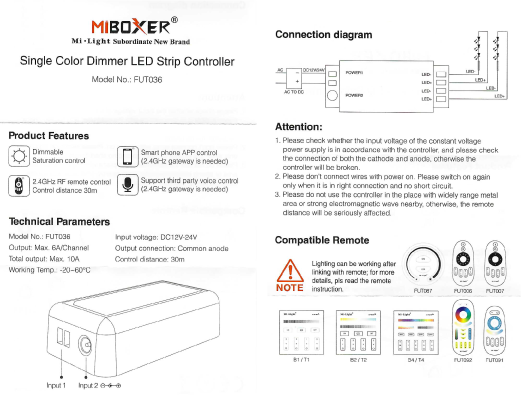

It can run up to 10A, 6A max per channel. The output channels are not internally bridged on this controller. If you are running more than 6A, please utilise both channels and bridge the positive and negative outputs. View the supporting info tab for a wiring diagram.

The base stations are wirelessly controlled, so you do not need to run signal wires between areas if you are using more than one controller. You can run 12V products and 24V products from the same remote.

It will remember the last setting when powered off, even after experiencing a period of power loss. This is so it can be used with a wall switch if needed.

Note this product needs to be accompanied with a 4 Zone Controller Remote. This remote allows you to choose between 4 different zones, and can be used with single colour or CCT controllers, or a mix of both! It can turn them on and off, and dim the lights of the LEDs in each zone independently. You will need at least one controller for each zone you wish to run, but one remote will operate them all. Please see 4 Zone Controller Remote for all the details on its functionality.
