4 Zone CCT Receiver 12/24V 12A (Only 12 remaining)

In stock
Regular Price $49.90
  • Buy 3 for Regular Price $46.90 each and save 6%
Technical Data
Zones4 Zone
Input Voltage12/24V DC
Output6A max per channel, 12A max total
Controller DimensionsL=90mm, W=48mm, H=24mm

This CCT (correlated colour temperature) receiver can be used to control our Colour Temperature Adjustable strip light.

It can run up to 12A, 6A per channel. When used with our 19.2W 12V CCT strip light, it can control up to 144W, which is 7.5m of strip!

The base stations are wirelessly controlled, so you do not need to run signal wires between areas, and you can run 12V products and 24V products from the same remote.

It will remember the last setting when powered off, even after experiencing a period of power loss. This is so it can be used with a wall switch if needed.

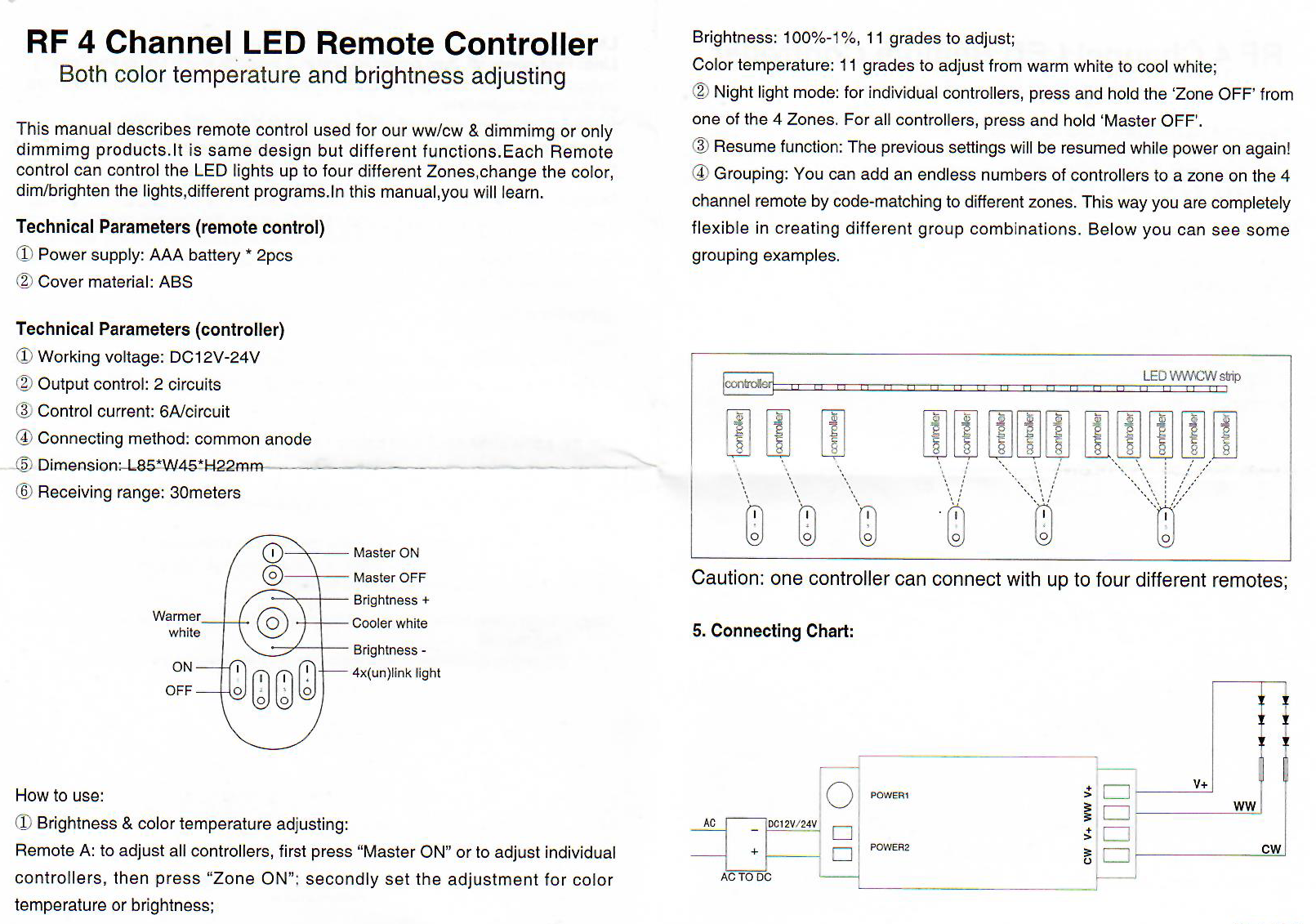

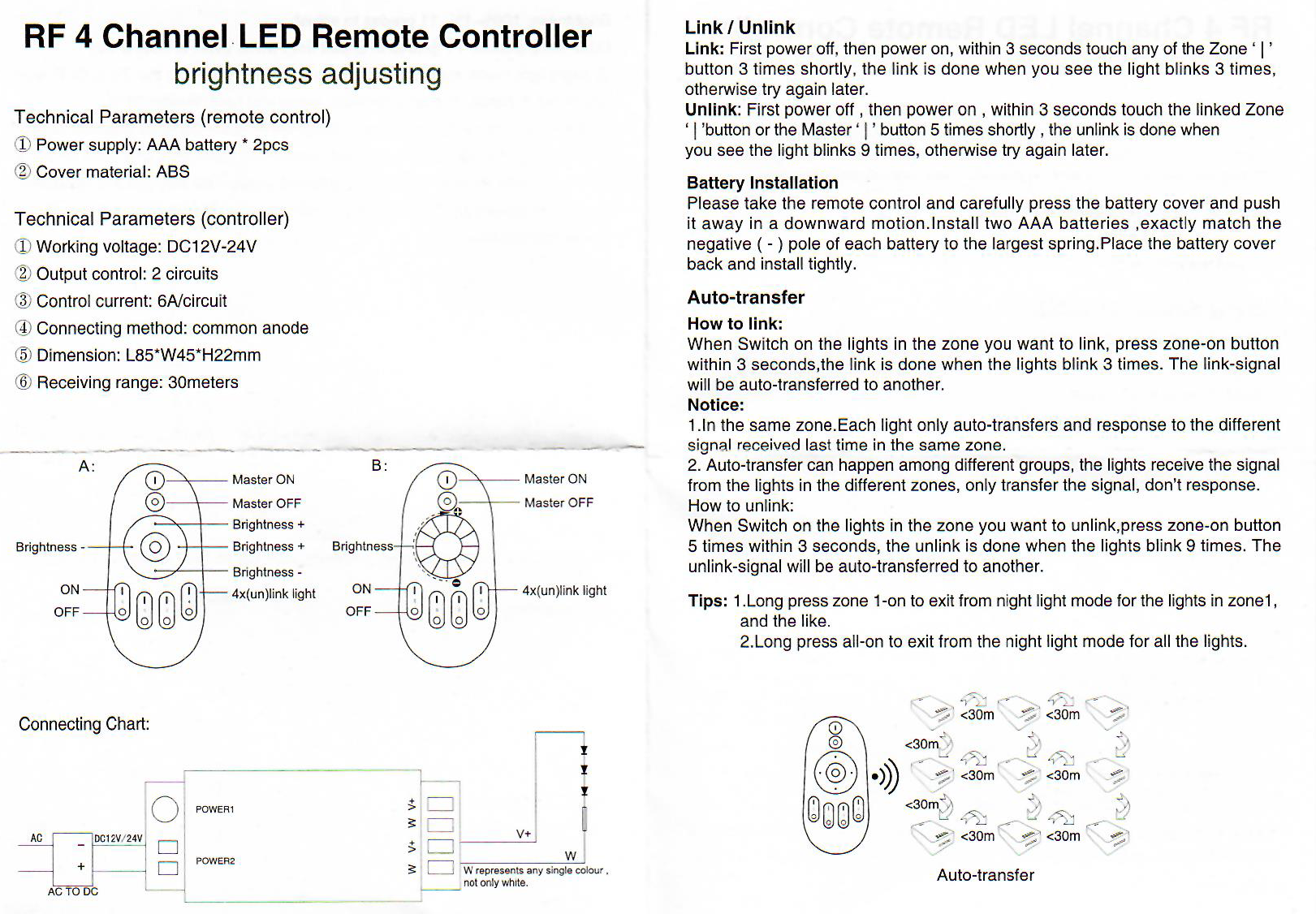

Note this product needs to be accompanied with a 4 Zone Controller Remote. This remote allows you to choose between 4 different zones, and can be used with single colour or CCT controllers, or a mix of both! It can turn them on and off, dim the lights, and adjust the colour temperature of the LEDs in each zone independently. You will need at least one controller for each zone you wish to run, but one remote will operate them all. Please see 4 Zone Controller Remote for all the details on its functionality.
