Wall Touch Plate RGB Controller 12A 12/24V DC

In stock
Regular Price $49.90
  • Buy 3 for Regular Price $46.90 each and save 6%
  • Buy 6 for Regular Price $43.90 each and save 12%

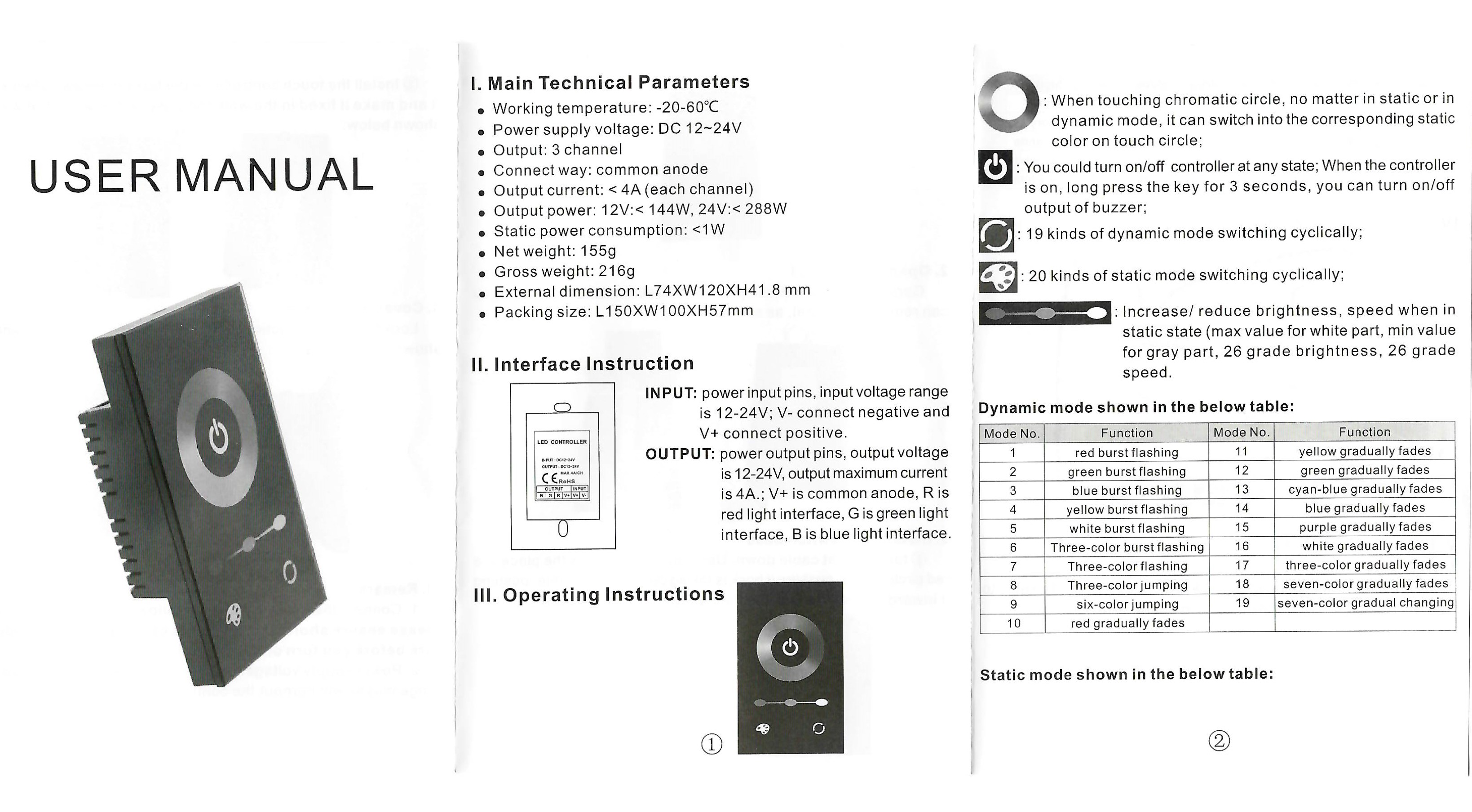

Technical Data
Zones1 Zone
Input Voltage12-24V DC
Max Current12A max (4A per channel)
Modes20 colours, 19 modes
Controller DimensionsH=120mm, W=73.5mm, D=42mm

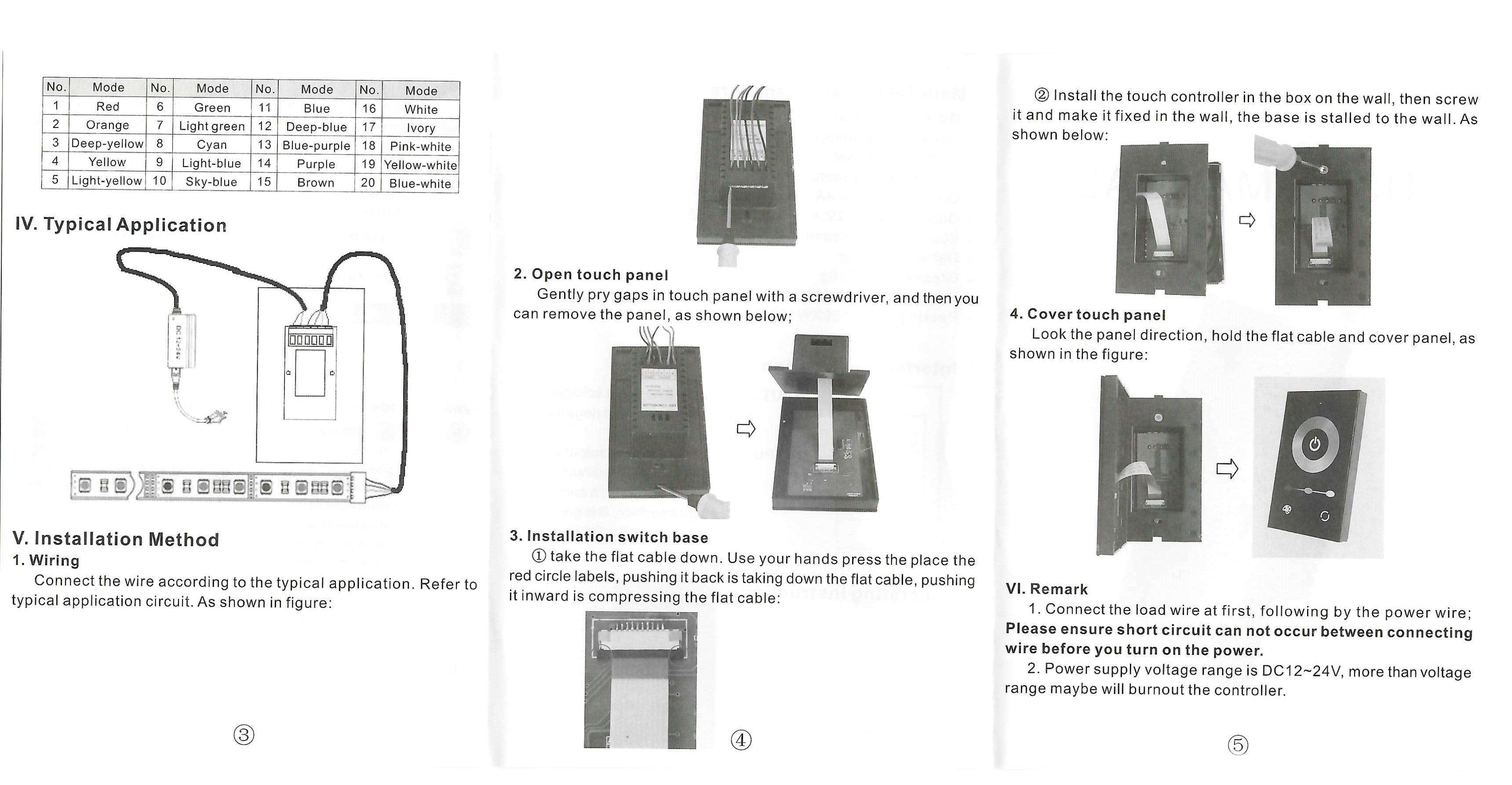

This wall plate RGB controller is designed for controlling any 12V or 24V RGB colour-changing product, such as our LED RGB strip light. It has a clean modern look with its white touch panel and is designed to be installed into a standard flush box recessed into the wall.

It emits a beep to indicate when a touch has registered - however this can be muted simply by pressing and holding the power button until it sounds (about 5 seconds). Repeat to turn back on.

Cycle between the 20 static colours using the palette button on the bottom left, or the 19 dynamic modes using the bottom right button. You can also use the colour wheel to choose any colour, and slide or tap your finger along the dimmer line to increase/decrease brightness.

The maximum output of this controller is 4A per channel (12A max total).

This controller remembers its last setting after power loss, so it will return to whatever mode it was on before loss occurred, including staying off if it was off initially.
