Single Channel 30A Amplifier/Repeater

In stock
SKU
LED-CONAMP30
Regular Price $44.90
  • Buy 2 for Regular Price $42.90 each and save 4%
  • Buy 5 for Regular Price $40.90 each and save 9%

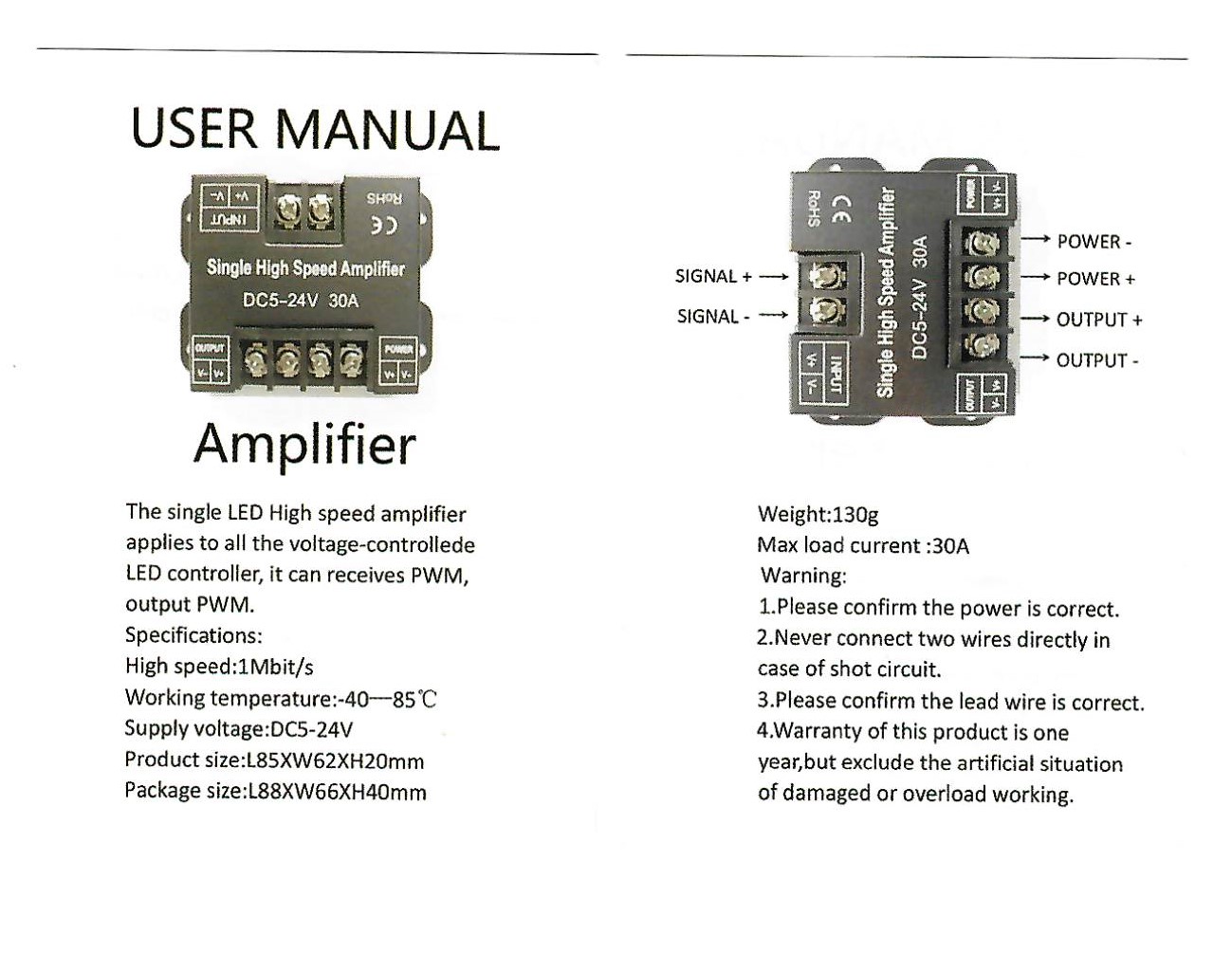

Technical Data
Zones1 Zone
FunctionAmplifier
Input Voltage5-24V DC
Max Current30A (26A max load)
Operating Temperature-40 - 85°C
Weight130g
DimensionsL=86.5mm (incl. tabs), W=62mm, H=20mm

This single channel signal amplifier/repeater is required when running more single colour product than a controller is rated for: the controller base will power and control one part and the remainder is run via this amplifier - which acts as a slave to the main controller - and is powered with a separate power supply (not included).

It has a single high-power channel capable of driving up to 30A total, but we recommend loading no more than 26A as driving any controller or amplifier at maximum capacity will shorten its lifespan. It can be run from 5V, 12V, or 24V DC.

A signal wire is required to link the amplifier to the main controller. These wires do not have to be heavy duty as they only carry a signal. Wire them into the positive and negative input at the top of the amplifier. If using more than one amplifier, these wires can be looped to the next amplifier, in a daisy-chain effect.

Write Your Own Review
You're reviewing:Single Channel 30A Amplifier/Repeater
Your Rating

All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.

This item is covered for 24 months from the time of sale.

In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.

Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.

Single Channel 30A Amplifier/Repeater is available to buy in increments of 1
