RGB 12A Amplifier/Repeater

In stock
Regular Price $44.90
  • Buy 2 for Regular Price $42.90 each and save 4%
  • Buy 5 for Regular Price $40.90 each and save 9%
Technical Data
Input Voltage12-24V DC
Operating Life50,000 hours
Max Current12A, 4A per channel, max 10A total
Operating Temperature
DimensionsL=105mm (incl. tabs), W=64mm, H=24mm

This RGB amplifier/repeater is required when running more RGB product than a single RGB controller is rated for. The excess is run through this RGB amplifier with a separate power supply, but the signal comes from the one controller. As many of these RGB amplifiers can be used as required.

It has 3 high-power channels capable of driving up to 4A per channel up to a maximum of 12A, but we recommend loading no more than 10A as driving any controller or amplifier at maximum capacity will shorten its lifespan. It can be run from 12 to 24V DC.

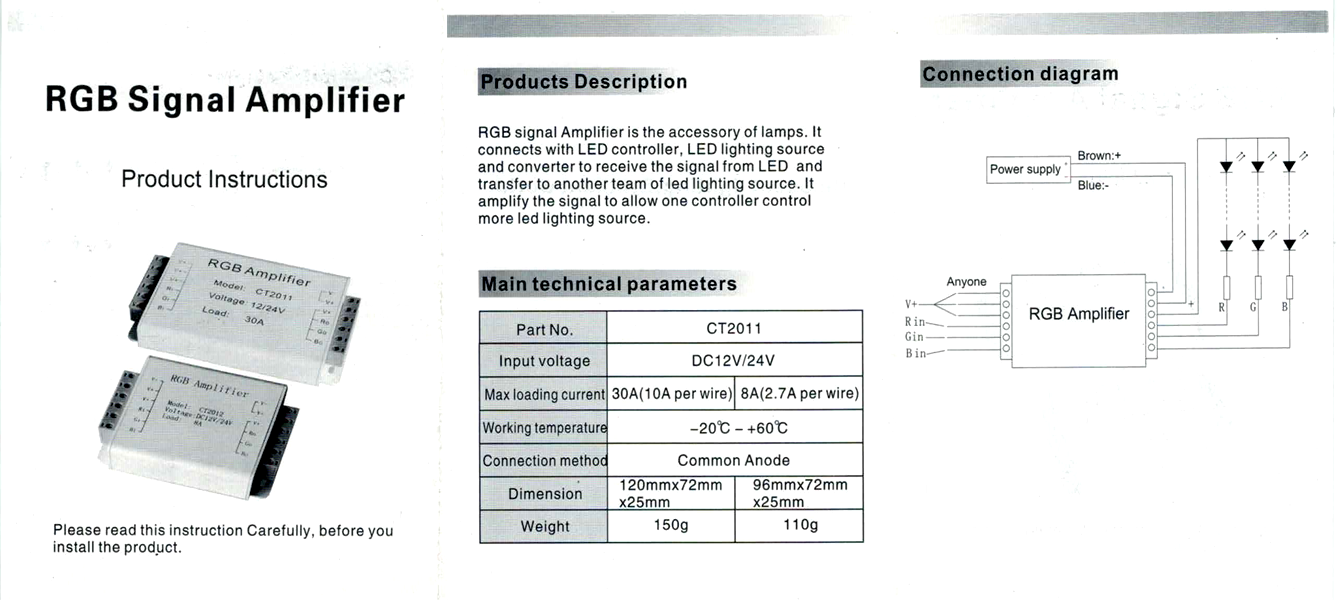

A signal wire is required to link the RGB amplifier to the main controller. These wires do not have to be heavy duty as they only carry a signal. If using more than one amplifier, these wires can be looped to the next amplifier. If using this amplifier to control single colour strip, bridge the inputs together and the outputs together (see images for wiring instructions).

Write Your Own Review
You're reviewing:RGB 12A Amplifier/Repeater
Your Rating

All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.

This item is covered for 24 months from the time of sale.

In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.

Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.

RGB 12A Amplifier/Repeater is available to buy in increments of 1
