PWM Dimmer with Potentiometer 30A

In stock
SKU
LED-CONPWM30A
Regular Price $29.90
  • Buy 2 for Regular Price $28.90 each and save 3%
  • Buy 5 for Regular Price $26.90 each and save 10%
Technical Data
Zones1 Zone
FunctionDimmer
Input Voltage12-24V DC
Output360W at 12V DC, 720W at 24V DC
Max Current30A
Standby Power Consumption1W
Weight92g
DimensionsL=86.5mm, W=62mm, H=36mm (incl. knob)

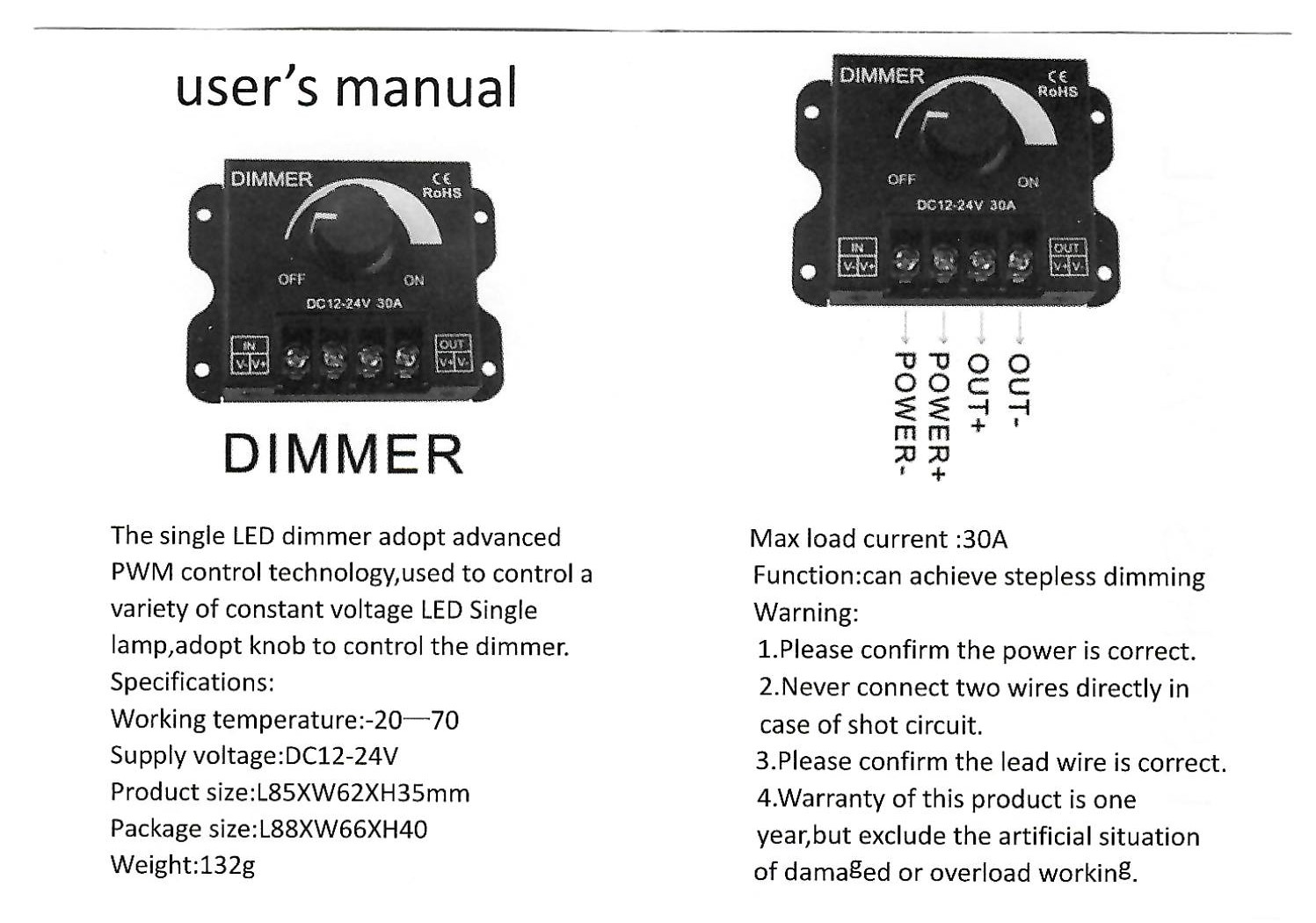

This single channel PWM Dimmer is designed for adjusting the brightness of any 12/24V resistor-based LED product, such as our single colour strip light or individual LEDs.

There is no remote to accompany this simple dimmer, the brightness is set at the built-in potentiometer.

It can dim a massive 30A, which is 360W at 12V DC, 720W at 24V DC.

Write Your Own Review
You're reviewing:PWM Dimmer with Potentiometer 30A
Your Rating

All LEDstuff products are supplied with a warranty that the item is free from defects in materials and workmanship.

This item is covered for 24 months from the time of sale.

In the event of a warranty claim, LEDstuff reserves the right to repair or replace the product where applicable.

Faults due to misuse, alteration, normal wear, or accident are not covered under warranty.

PWM Dimmer with Potentiometer 30A is available to buy in increments of 1
